ROOF DIAGRAM AND BUILDING CROSS SECTION

PALOMA STREET - ADU

PALOMA STREET - ADU

ROOF DIAGRAM AND BUILDING CROSS SECTION

ROOF DIAGRAM AND BUILDING CROSS SECTION

This plan diagram shows the relationship and function of the oversized roof. As the surface undulates, opens and closes, the roof mediates the solar exposure throughout the day as the sun changes position in the sky.

STREET VIEW

STREET VIEW

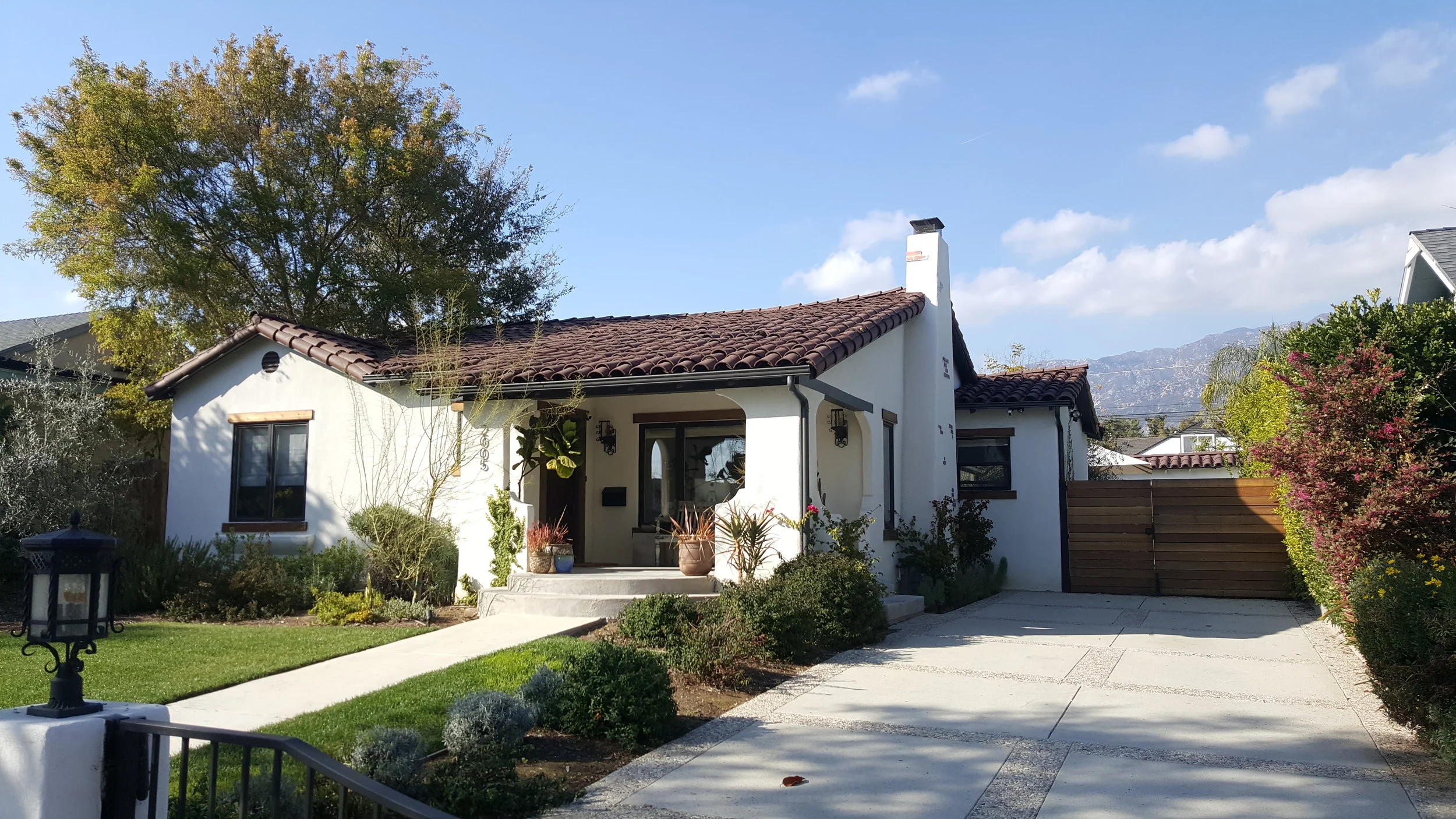

This is the front of the existing house on Paloma street in Pasadena. Our work is at the back of the property.

PERSPECTIVE DIAGRAM

PERSPECTIVE DIAGRAM

This is our project for an ACCESSORY DWELLING UNIT in Pasadena. This diagram shows the roof removed to show the building structure.

BUILDING ELEVATIONS

BUILDING ELEVATIONS

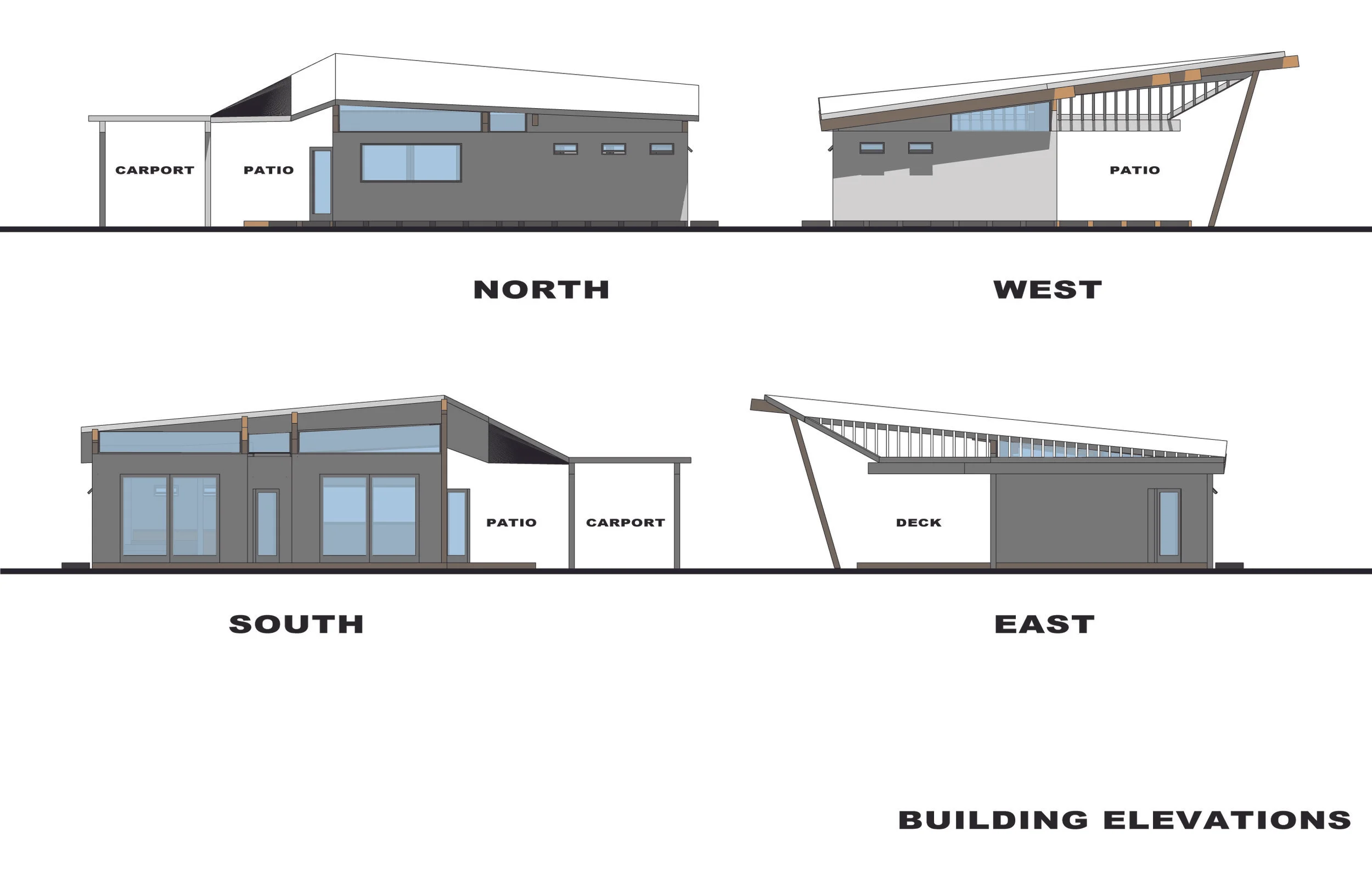

We are very excited about the roof on this extraordinary house. The building elevations show how the surface of the undulates over the building to allow light to penetrate the interior space evenly throughout the daytime hours.

ROOF PLAN

ROOF PLAN

The roof is shaped in response to the path of the sun and the requirements of the project. We need to cover the guest house, the two decks and the carport. We decided to design a single roof to do the one job.

BACKYARD

BACKYARD

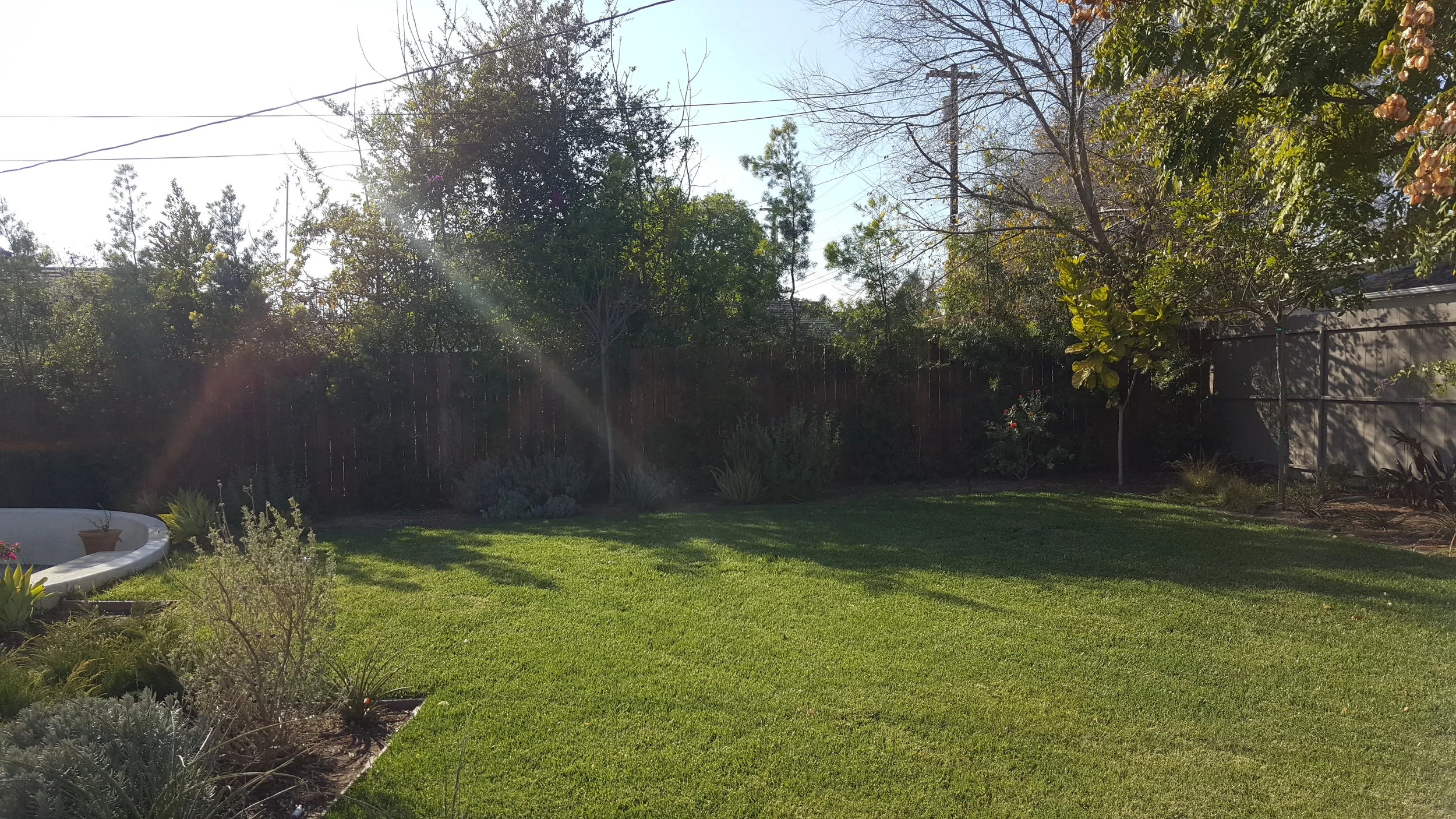

This is the back of the property where we will be building the new guest house.
